Issyk-Kul lidar survey, 2016

LIF lidar transects across Lake Issyk-Kul in autumn 2016, recording chlorophyll-a, CDOM, and suspended matter in oligotrophic mountain water

Published figures

Interpolated campaign fields, reproduced in their original published form.

Whole-lake composite

Interpolated chlorophyll a field mapped along the lidar track, Lake Issyk-Kul, Whole-lake composite
Fig. 1Chlorophyll a
Interpolated total organic carbon field mapped along the lidar track, Lake Issyk-Kul, Whole-lake composite
Fig. 2Total organic carbon
Interpolated total suspended matter field mapped along the lidar track, Lake Issyk-Kul, Whole-lake composite
Fig. 3Total suspended matter

2016 campaign

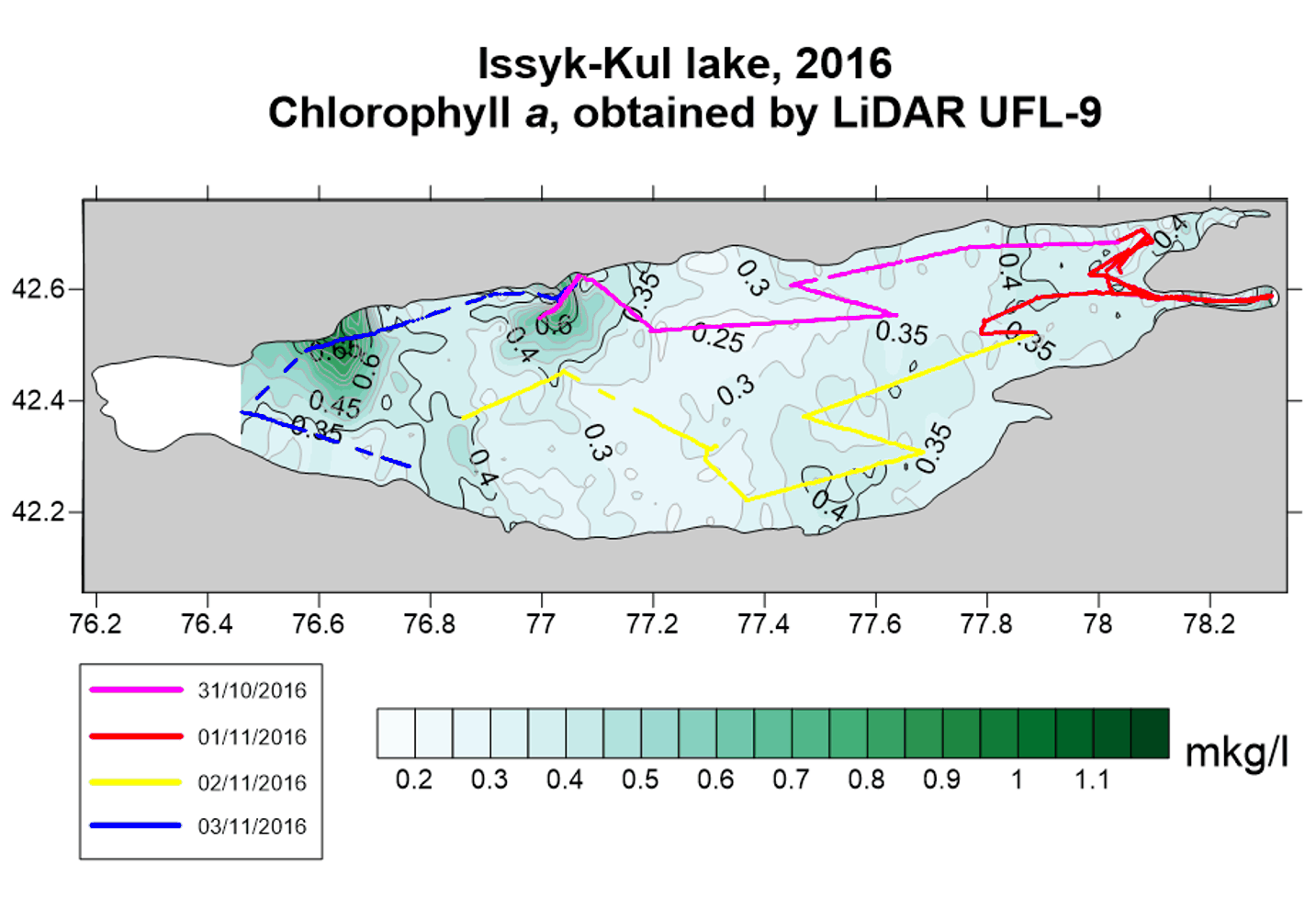

Interpolated chlorophyll a field mapped along the lidar track, Lake Issyk-Kul, 2016 campaign
Fig. 4Chlorophyll a

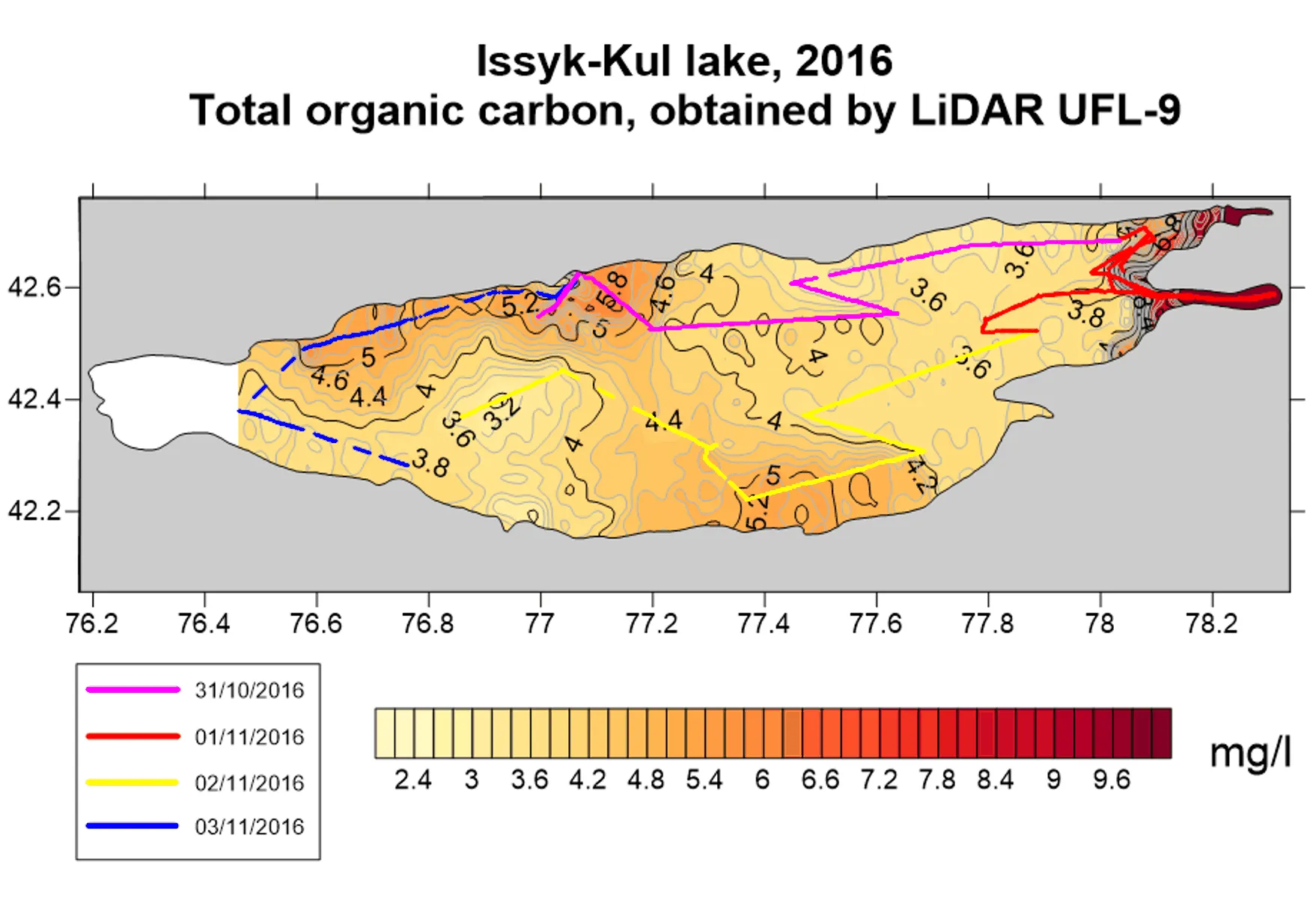

Interpolated total organic carbon field mapped along the lidar track, Lake Issyk-Kul, 2016 campaign
Fig. 5Total organic carbon

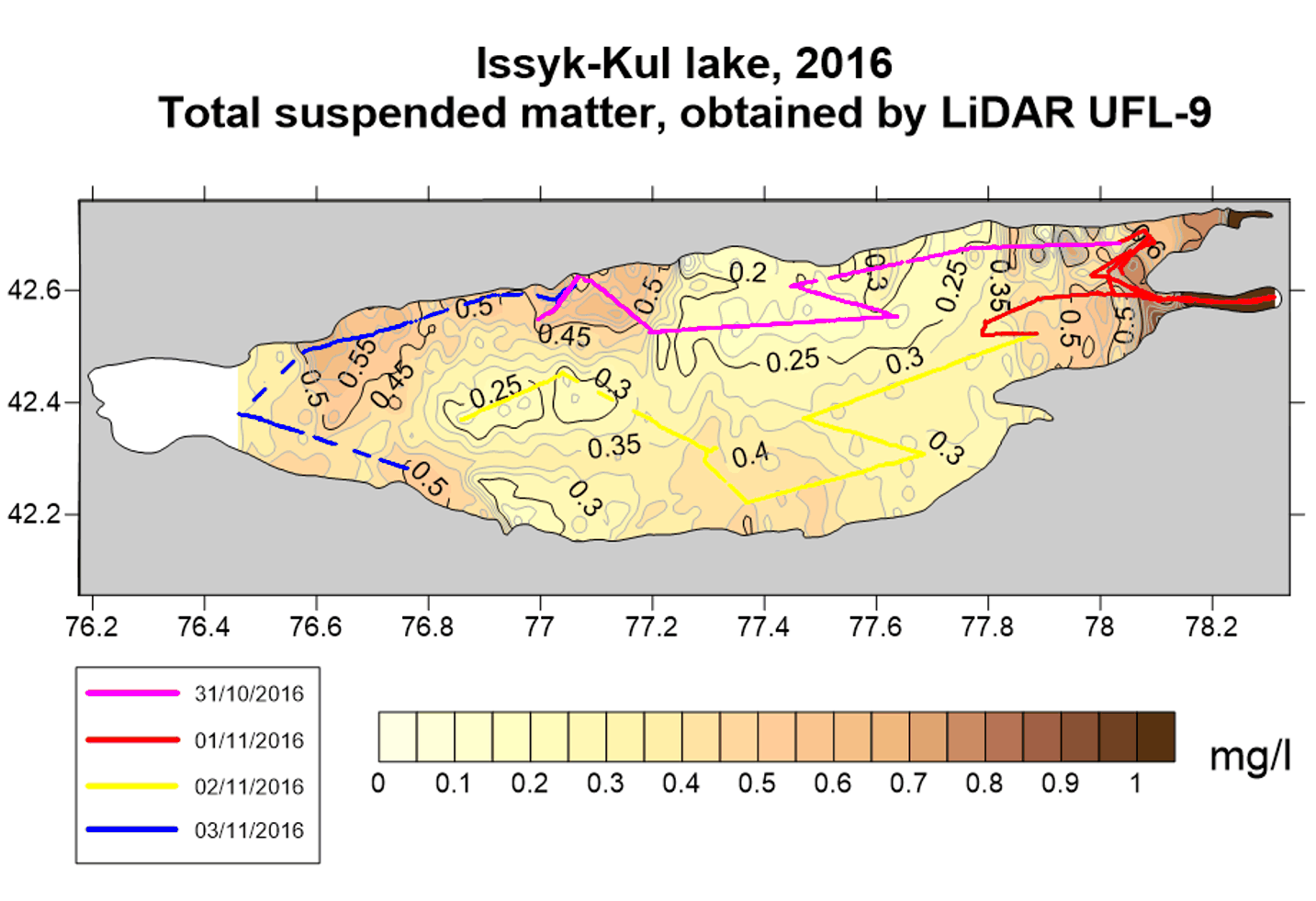

Interpolated total suspended matter field mapped along the lidar track, Lake Issyk-Kul, 2016 campaign
Fig. 6Total suspended matter

Eastern basin, July 2022

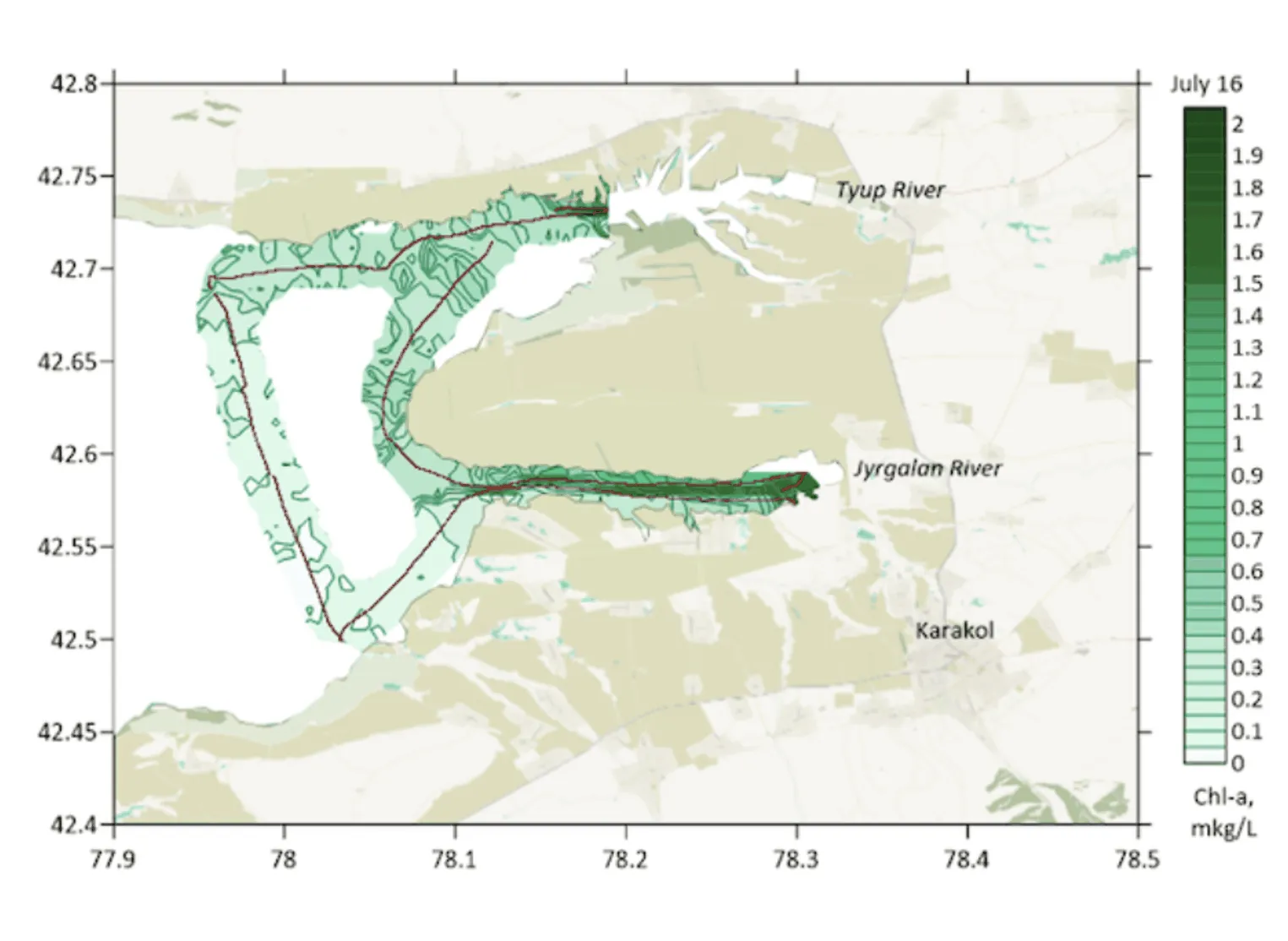

Interpolated chlorophyll a field mapped along the lidar track, Lake Issyk-Kul, Eastern basin, July 2022
Fig. 7Chlorophyll a

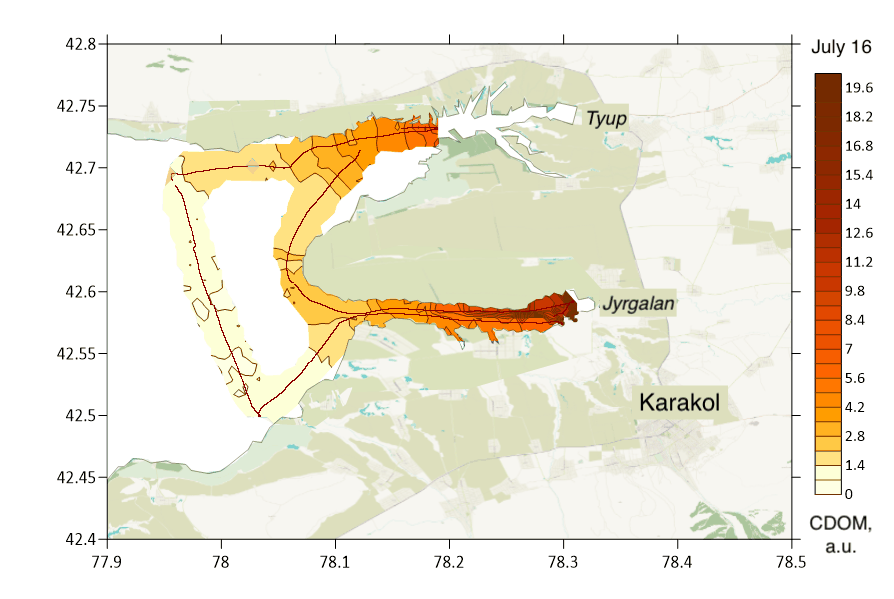

Interpolated CDOM field mapped along the lidar track, Lake Issyk-Kul, Eastern basin, July 2022
Fig. 8CDOM

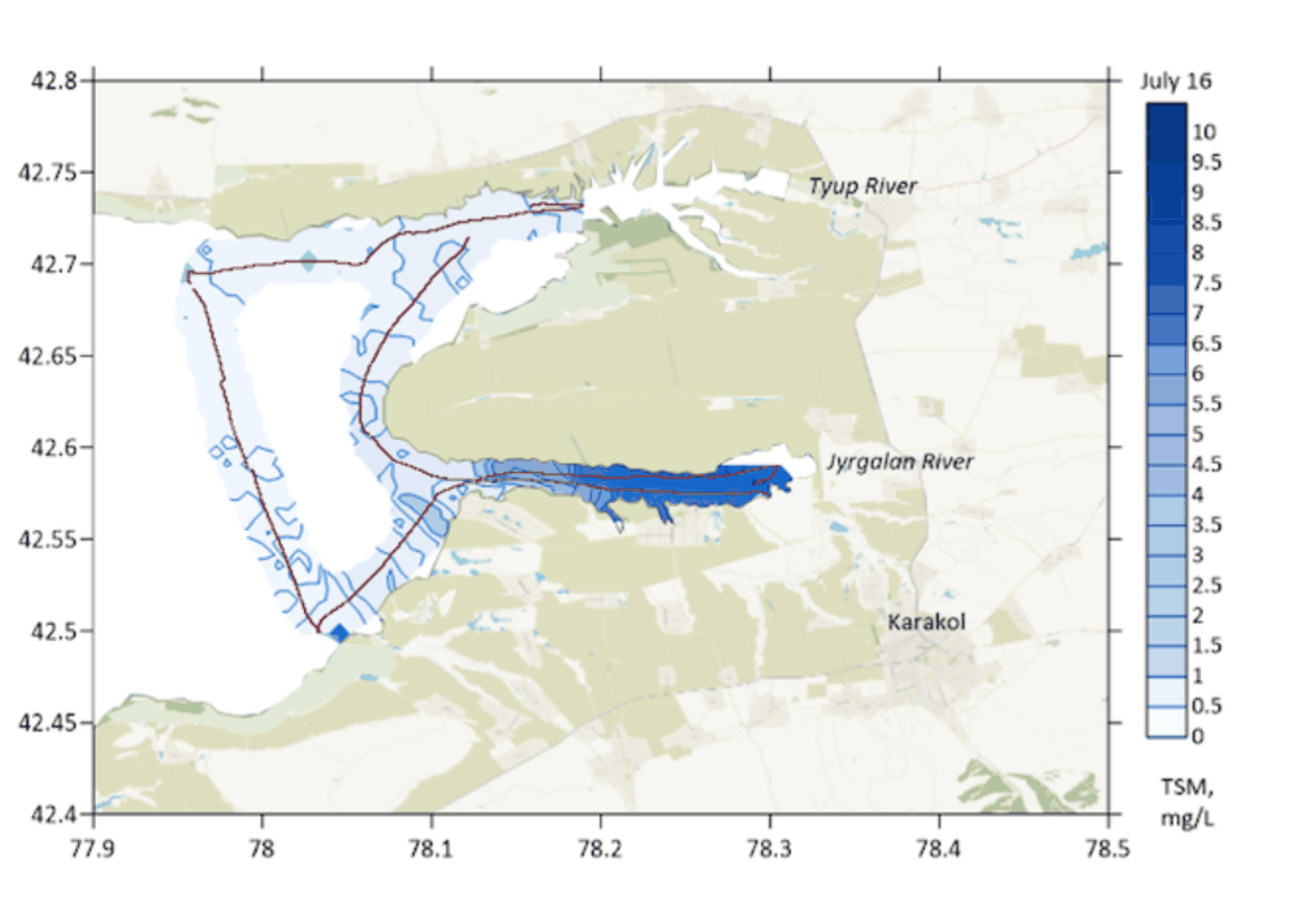

Interpolated total suspended matter field mapped along the lidar track, Lake Issyk-Kul, Eastern basin, July 2022
Fig. 9TSM

Northern shore, July 2022

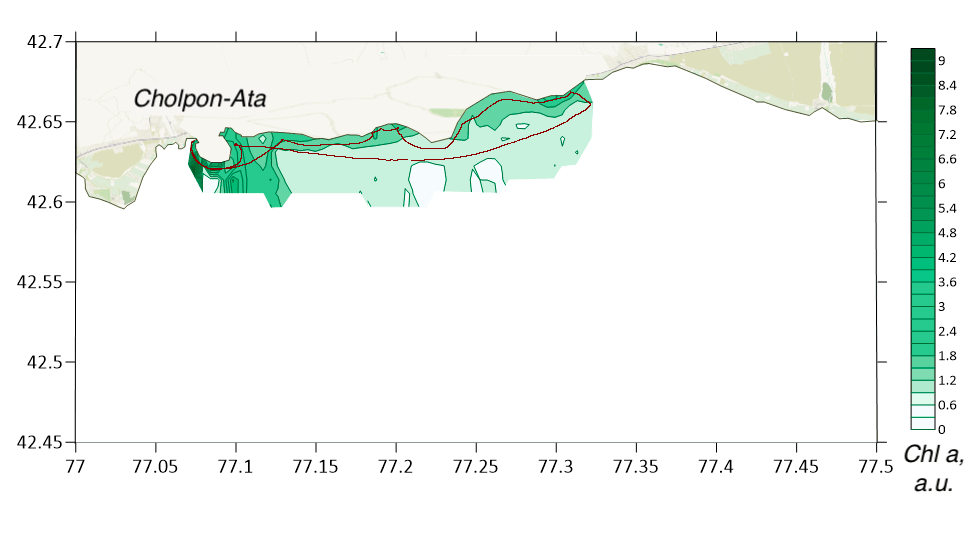

Interpolated chlorophyll a field mapped along the lidar track, Lake Issyk-Kul, Northern shore, July 2022
Fig. 10Chlorophyll a

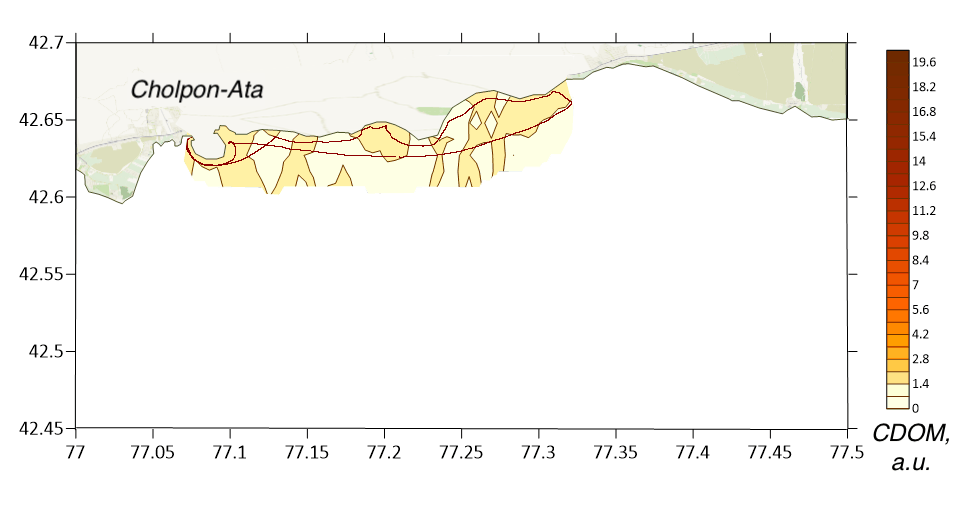

Interpolated CDOM field mapped along the lidar track, Lake Issyk-Kul, Northern shore, July 2022
Fig. 11CDOM

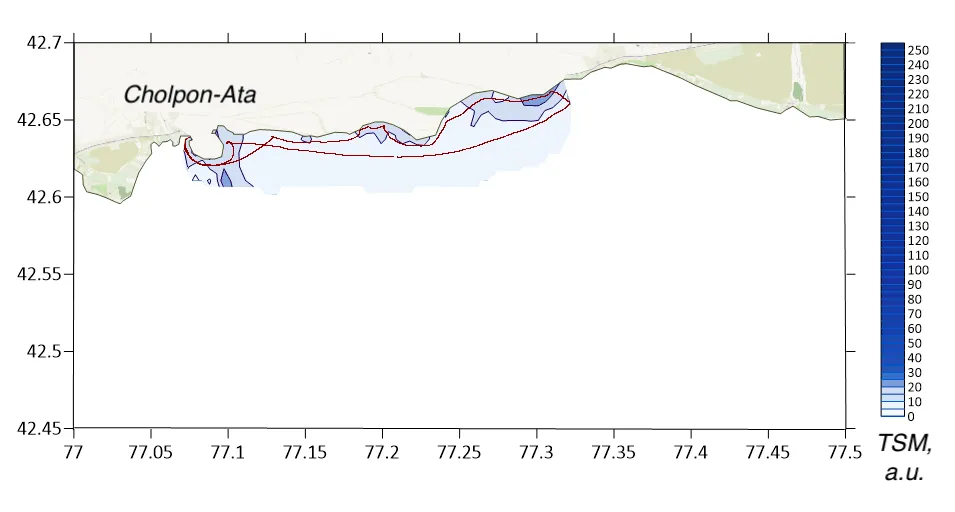

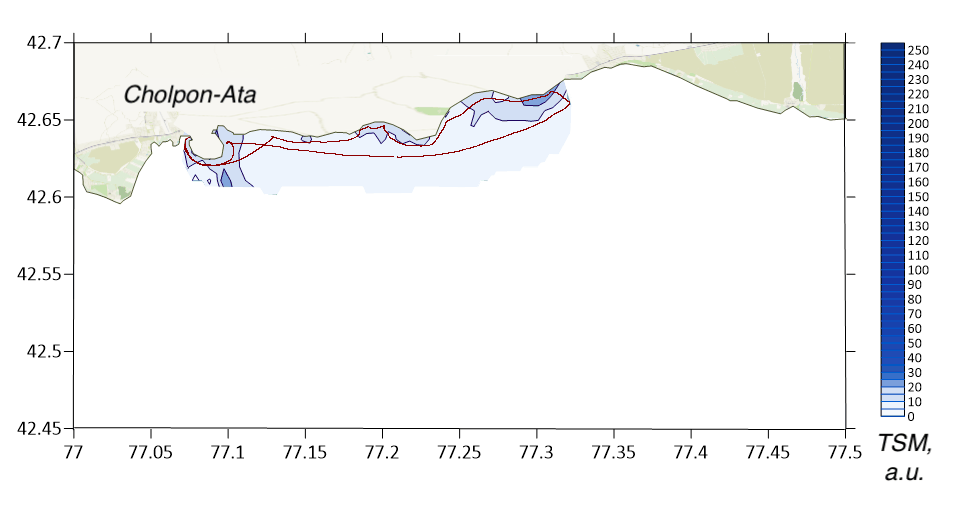

Interpolated total suspended matter field mapped along the lidar track, Lake Issyk-Kul, Northern shore, July 2022
Fig. 12TSM
Lake Issyk-KulCentral Asia
10 km
● Lake Issyk-Kul 2016, 2016-10-31 – 2016-11-03181,188 measurements IDW interpolation, 600 samples
Chl-a0.030.17µg/L
CDOM2.197.11a.u.
TSM0.320.84mg/L

Fig. 13 Campaign measurement record. 181,188 lidar returns are plotted along the vessel track for Chl-a, CDOM, TSM. The field view applies inverse-distance weighting to the same observations; the shoreline is from Natural Earth.

From 31 October to 3 November 2016, a LIF lidar recorded chlorophyll-a, CDOM, and suspended matter across Lake Issyk-Kul in Kyrgyzstan. The track covers the lake’s clear, oligotrophic surface waters.

The published figures include the 2016 campaign and later surveys in July 2022. A separate Sentinel-2 study published in 2023 used a one-day match-up dataset to develop regional retrieval models; its observation counts do not describe the 2016 track shown here.
