Sochi shelf survey, 2010

A 15,004-return LIF lidar survey of the narrow Black Sea shelf near Sochi, recording chlorophyll-a, CDOM, and suspended matter in river-influenced coastal water

Published figures

Interpolated campaign fields, reproduced in their original published form.

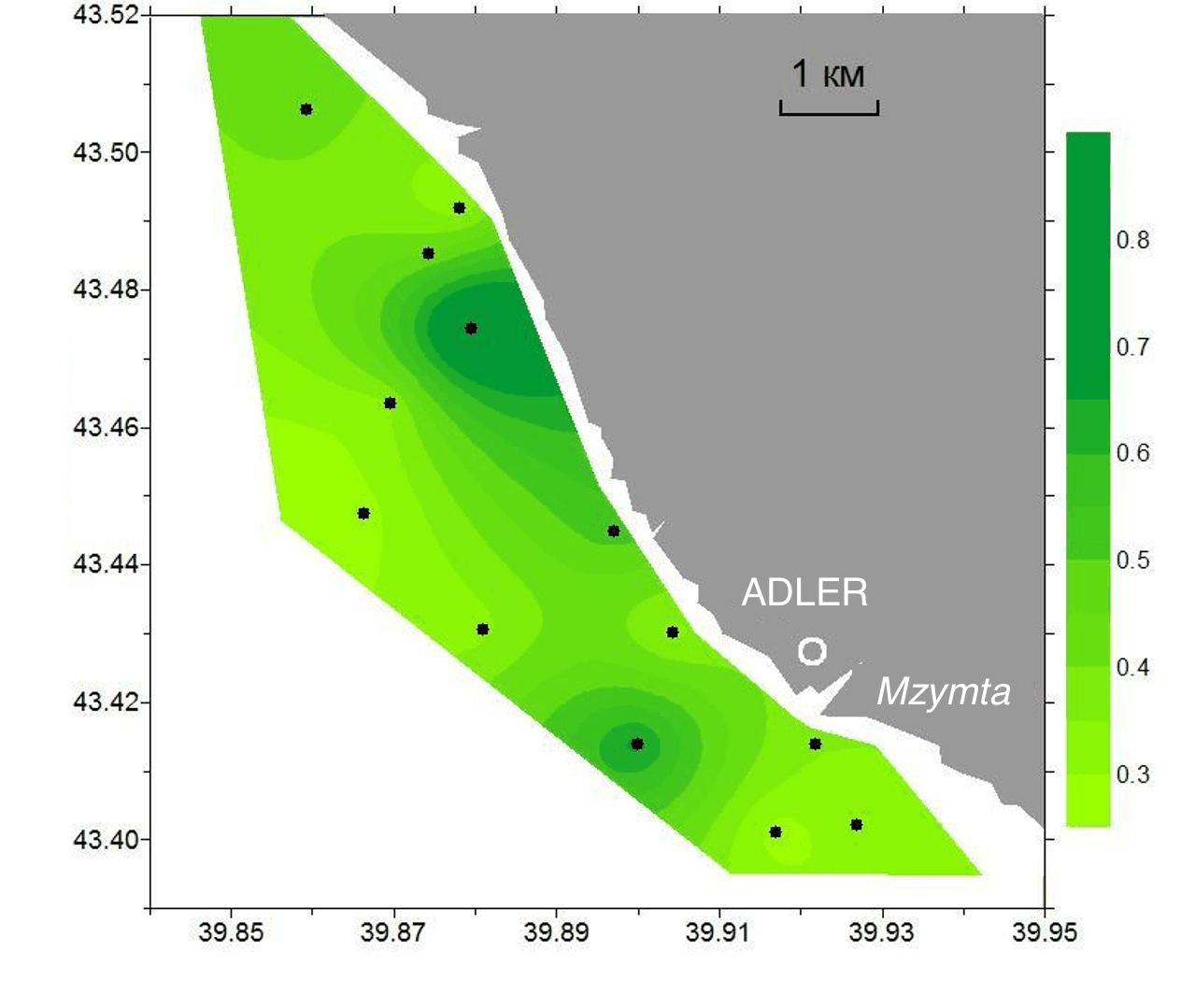

Interpolated chlorophyll a field mapped along the lidar track, Sochi shelf, 27 May 2010 — Fig. 1Chlorophyll a

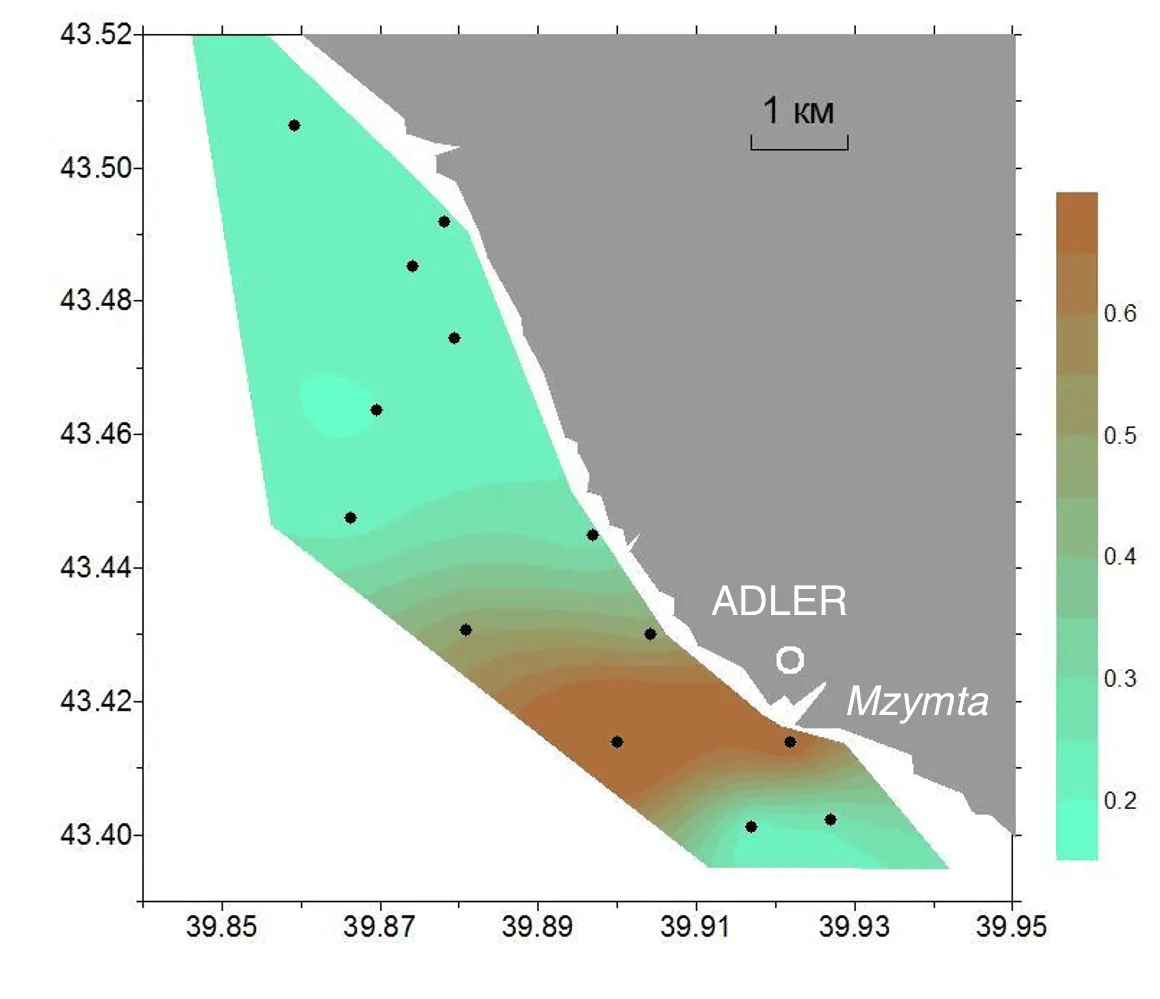

Interpolated CDOM field mapped along the lidar track, Sochi shelf, 27 May 2010 — Fig. 2CDOM

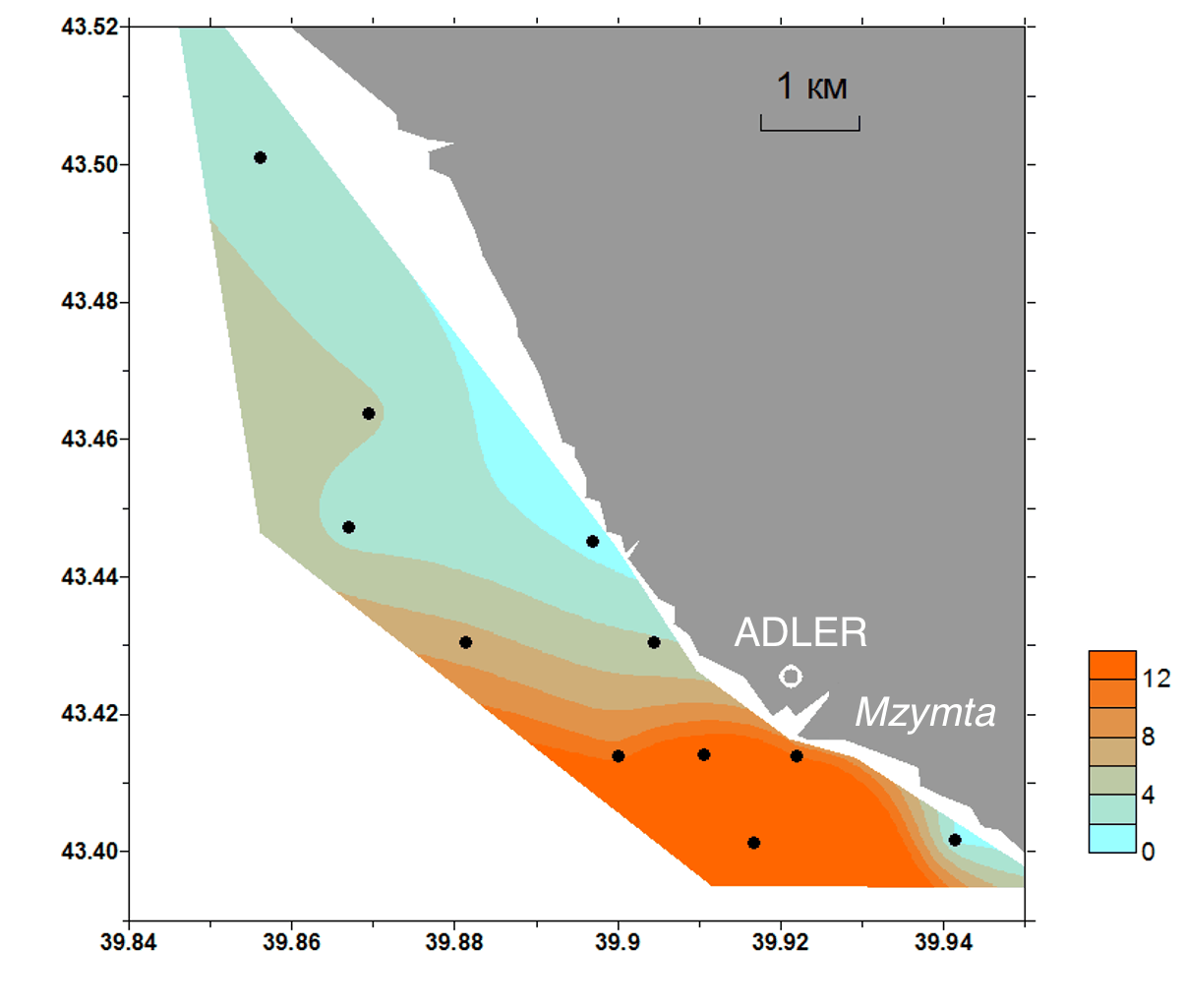

Interpolated total suspended matter field mapped along the lidar track, Sochi shelf, 27 May 2010 — Fig. 3TSM

Sochi shelfBlack Sea

● NE Black Sea 2010, 2010-05-2715,004 measurements IDW interpolation, 600 samples

Chl-a0.310.81µg/L

CDOM0.000.74a.u.

TSM2.0824.1mg/L

Fig. 4 Campaign measurement record. 15,004 lidar returns are plotted along the vessel track for Chl-a, CDOM, TSM. The field view applies inverse-distance weighting to the same observations; the shoreline is from Natural Earth.

In May 2010, a LIF lidar collected 15,004 returns across the narrow Black Sea shelf near Sochi. The survey recorded chlorophyll-a, CDOM, and suspended matter along a coast influenced by several short mountain rivers.

Chlorophyll-a was approximately 0.45 µg/L across the shelf. Suspended matter had a median close to 3 mg/L and exceeded 15 mg/L in the coastal band nearest river outflow. The transect records this nearshore-to-offshore gradient continuously along the vessel track.
