Patos Lagoon coastal plume survey, 2016

Three days of LIF lidar measurements at the mouth of Patos Lagoon, recording the optical structure of a sediment-bearing coastal plume

Published figures

Interpolated campaign fields, reproduced in their original published form.

Plume composite

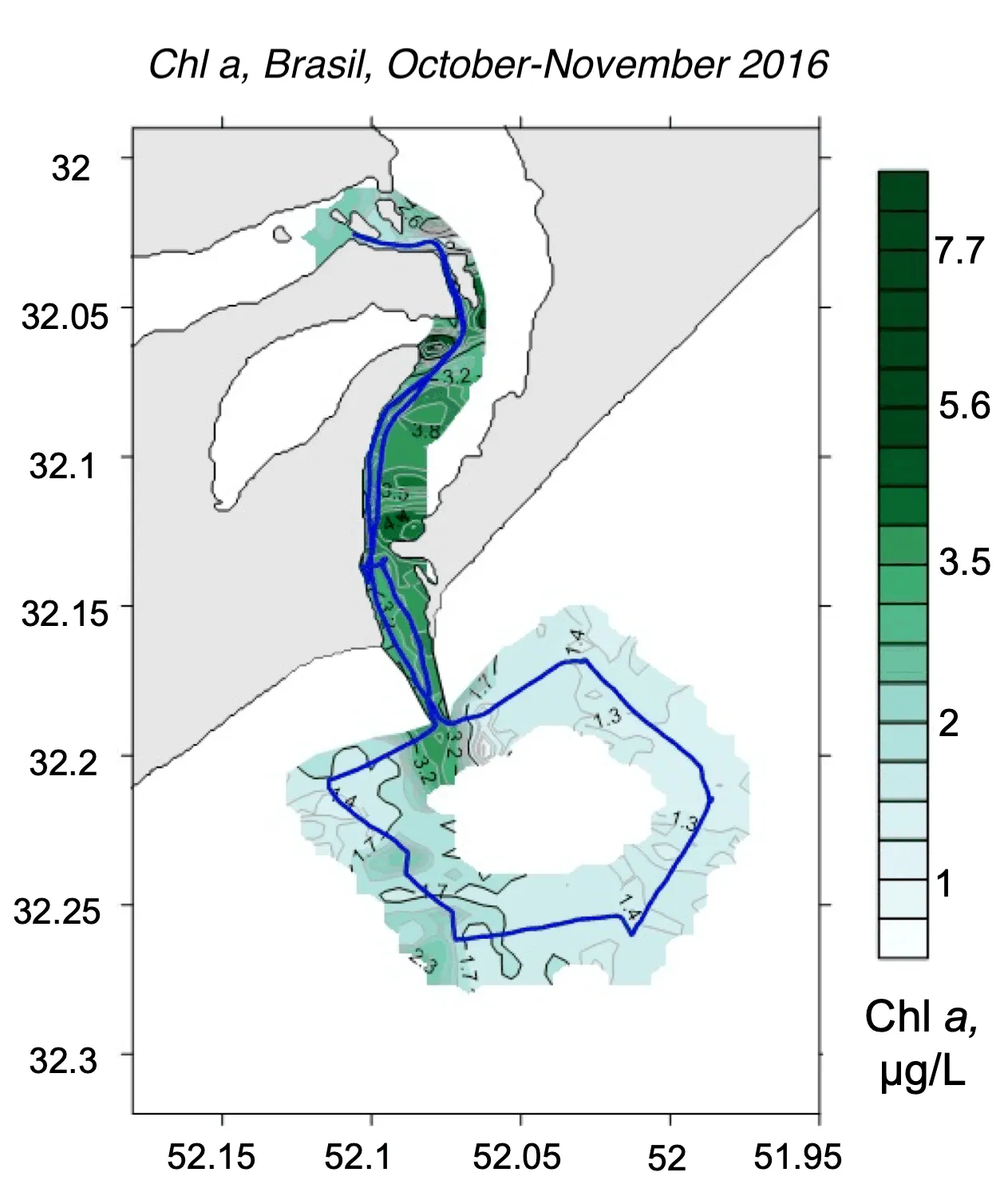

Interpolated chlorophyll a field mapped along the lidar track, Patos Lagoon mouth, Brazil, Plume composite
Fig. 1Chlorophyll a

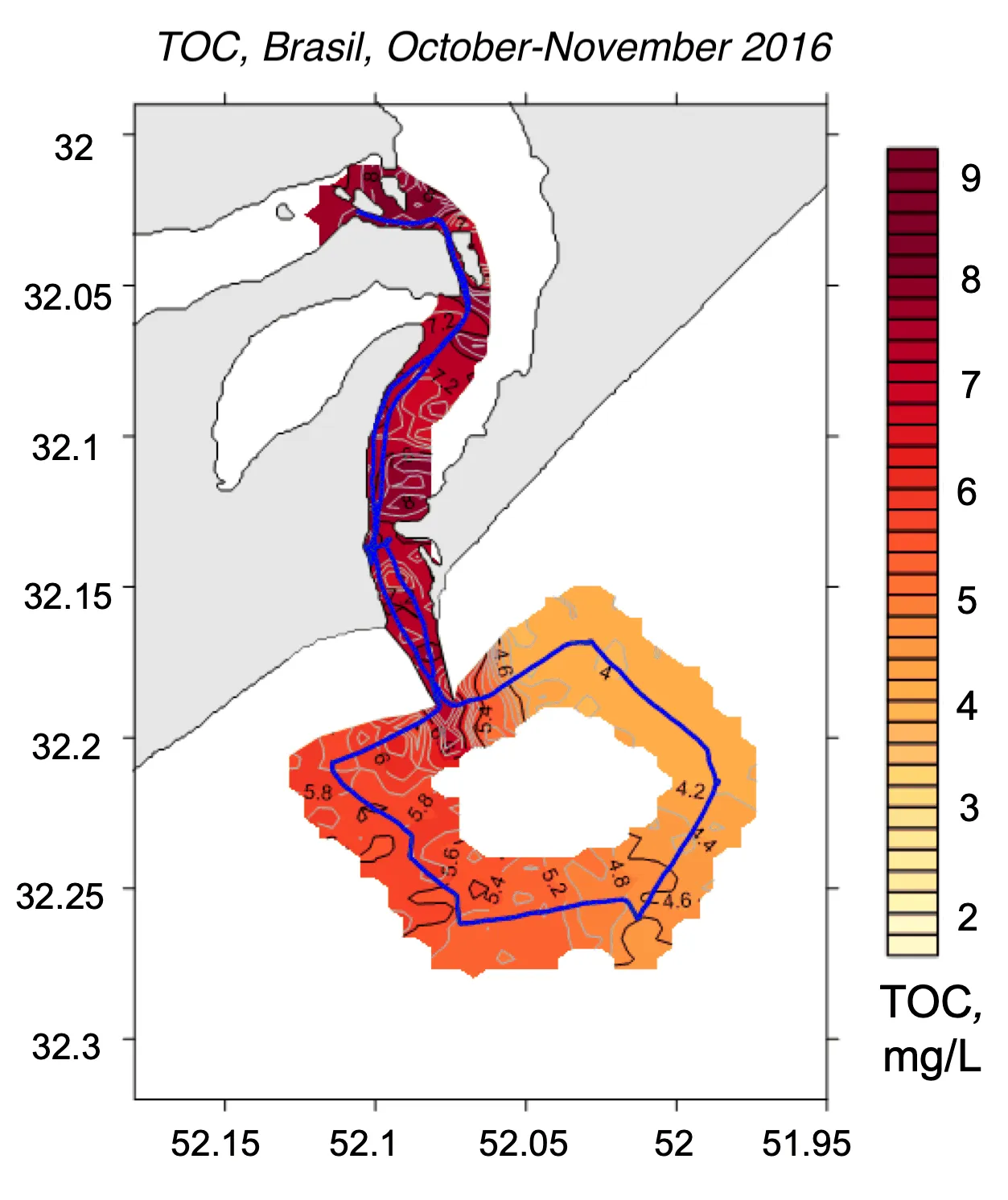

Interpolated total organic carbon field mapped along the lidar track, Patos Lagoon mouth, Brazil, Plume composite
Fig. 2TOC

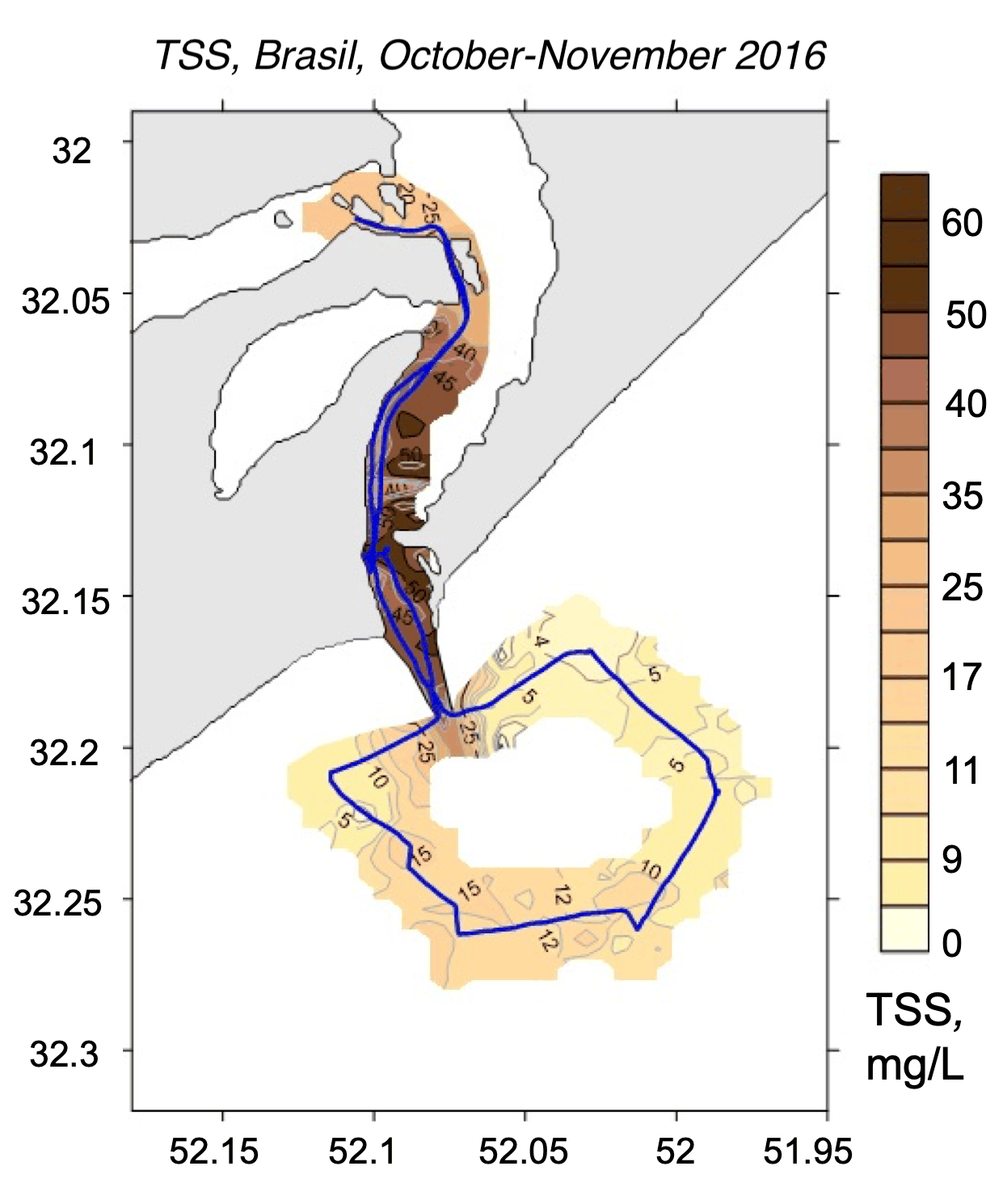

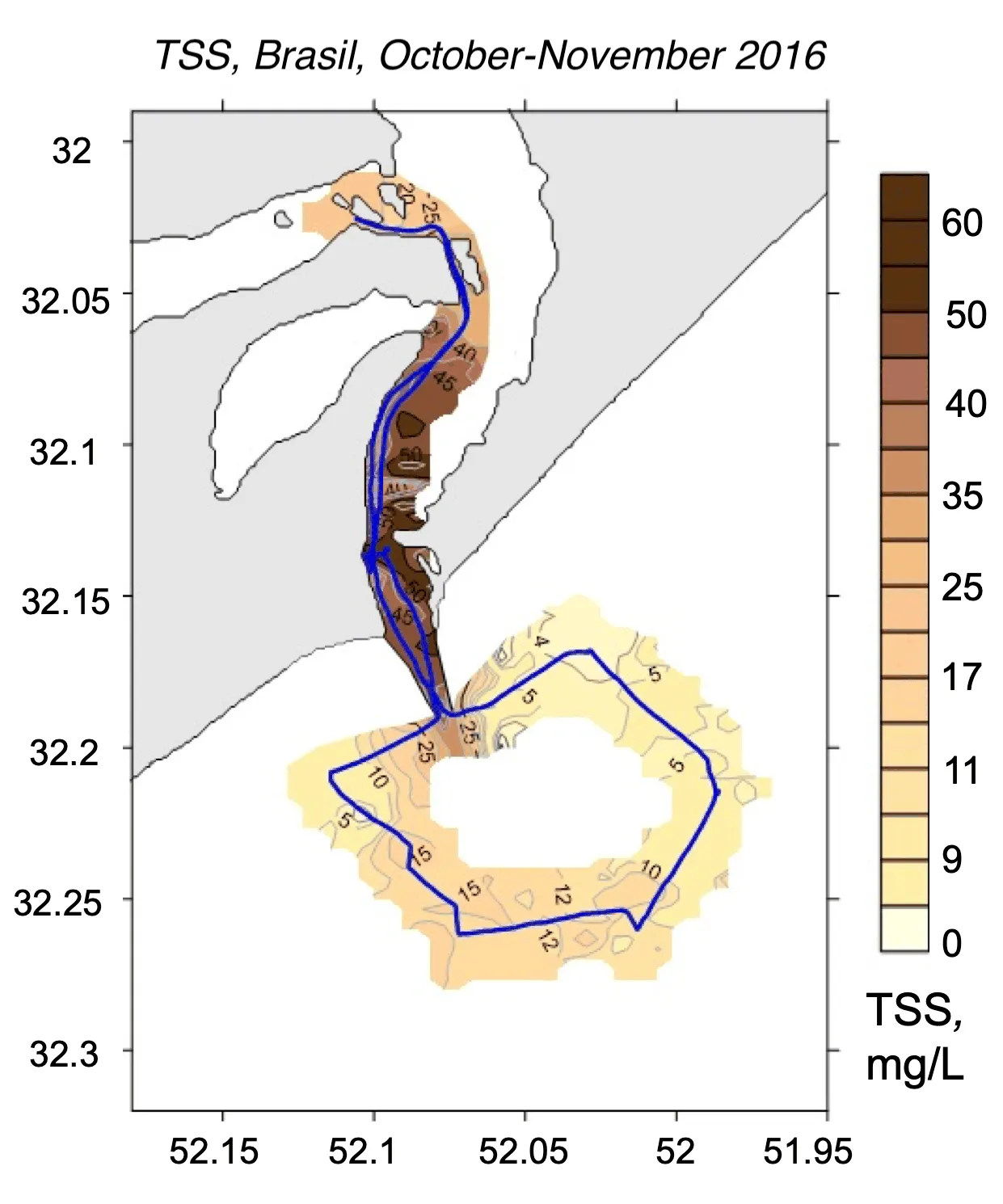

Interpolated total suspended matter field mapped along the lidar track, Patos Lagoon mouth, Brazil, Plume composite
Fig. 3TSM

2016 campaign

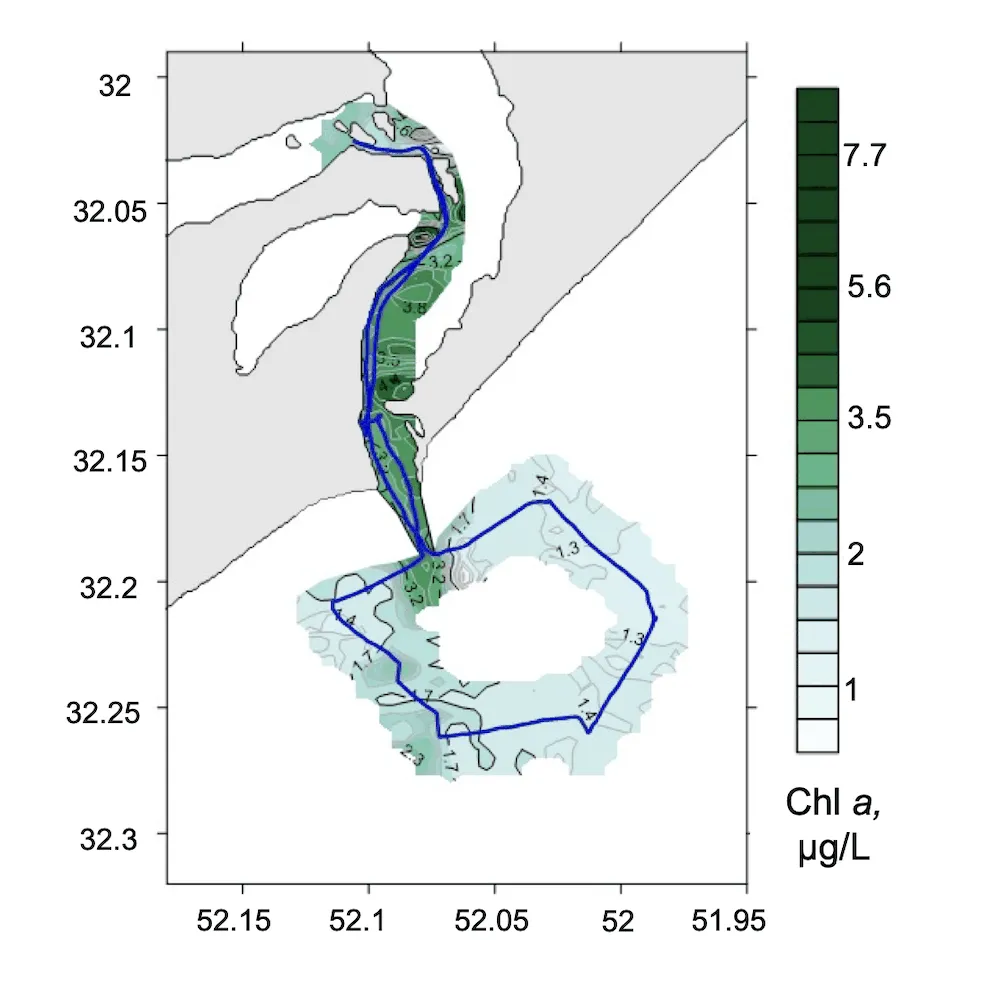

Interpolated chlorophyll a field mapped along the lidar track, Patos Lagoon mouth, Brazil, 2016 campaign
Fig. 4Chlorophyll a

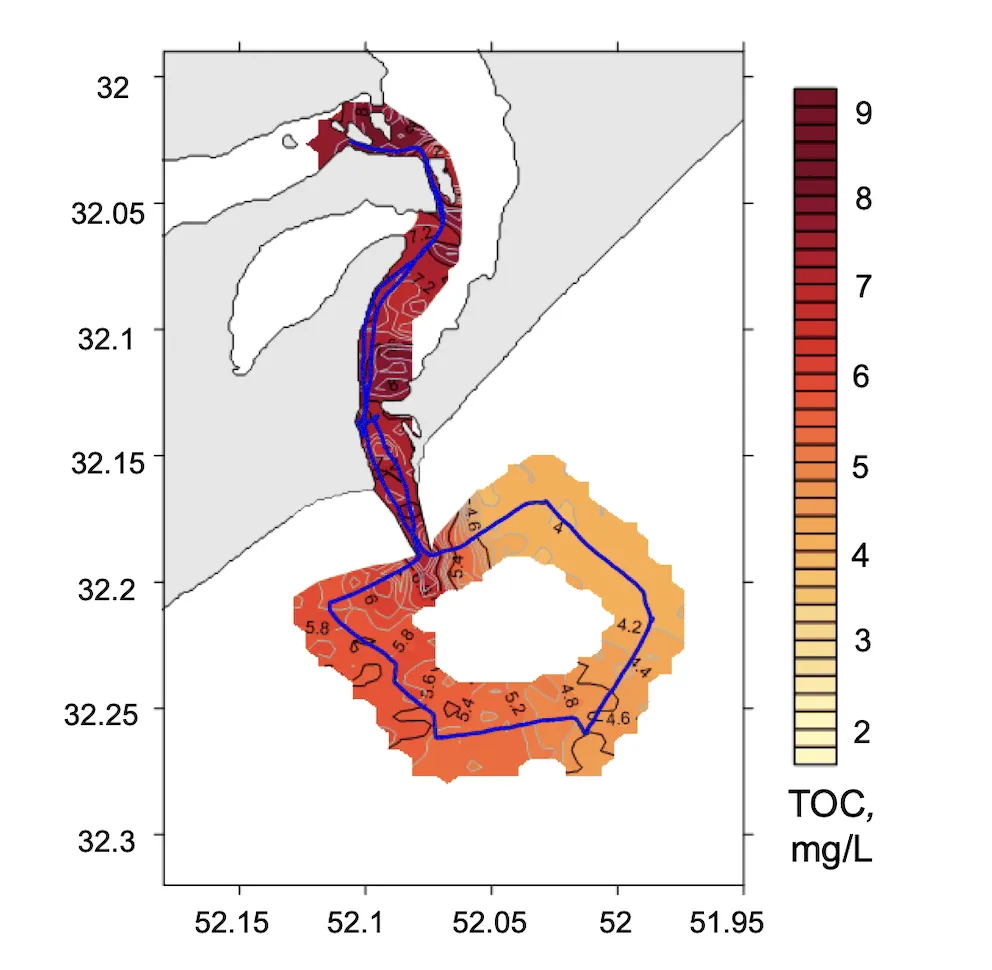

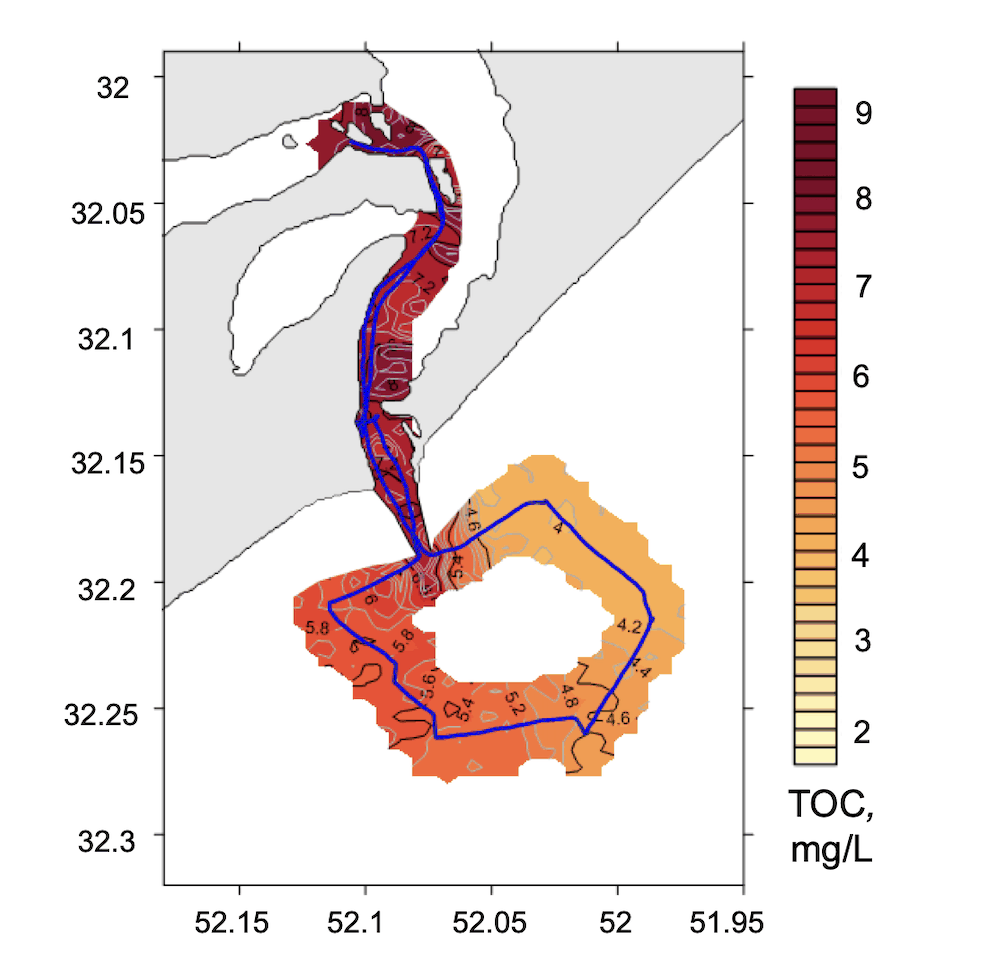

Interpolated total organic carbon field mapped along the lidar track, Patos Lagoon mouth, Brazil, 2016 campaign
Fig. 5TOC

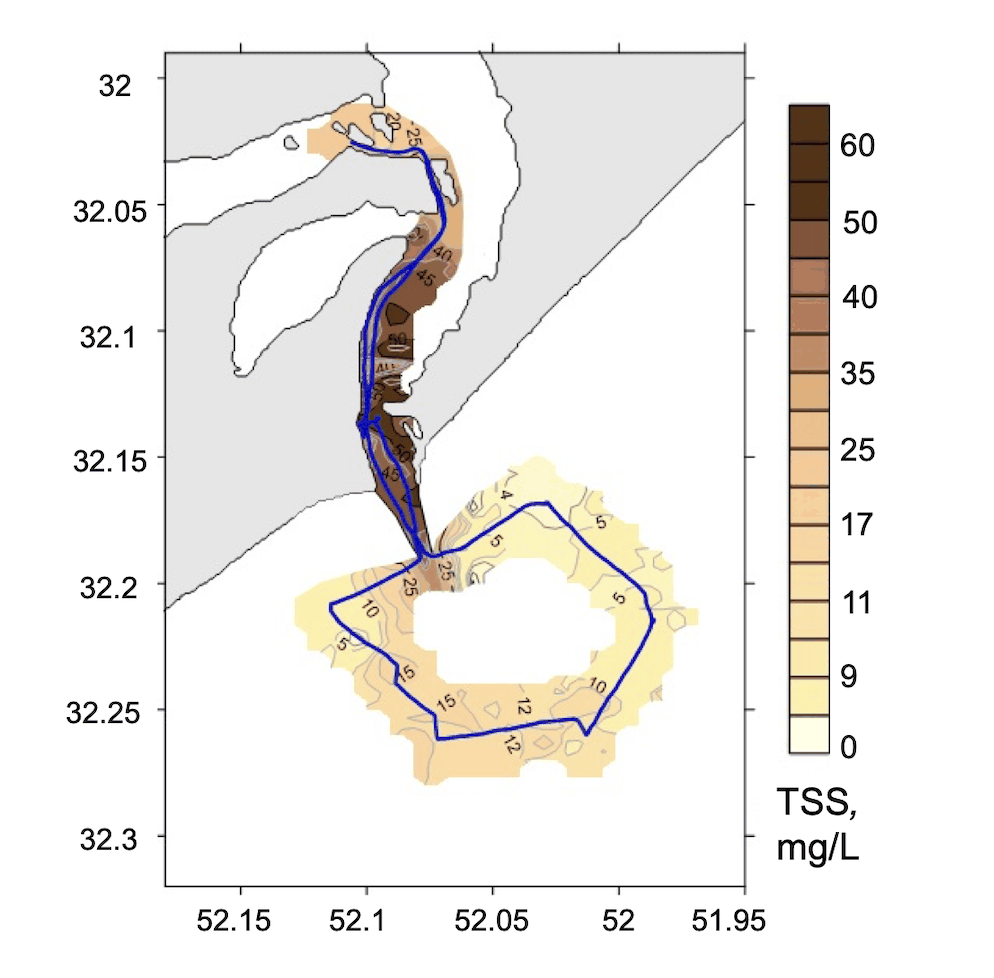

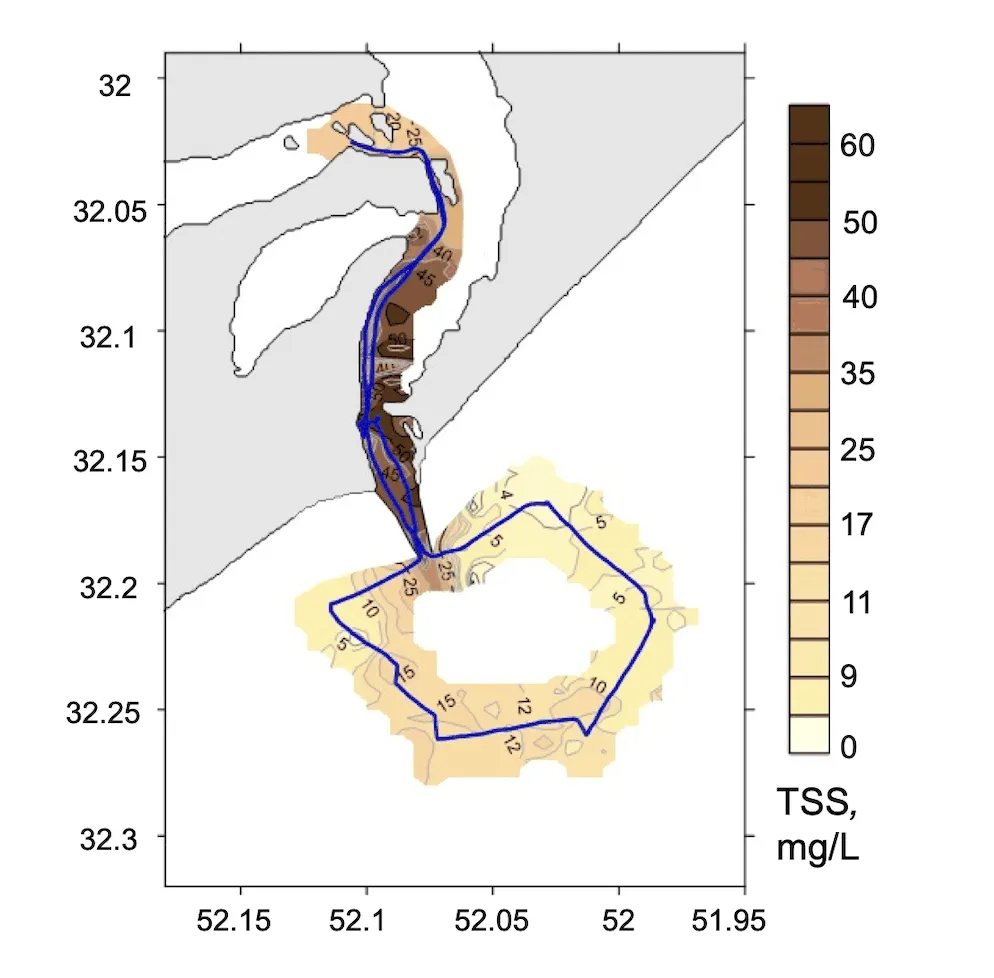

Interpolated total suspended matter field mapped along the lidar track, Patos Lagoon mouth, Brazil, 2016 campaign
Fig. 6TSM
Patos LagoonSouth Atlantic
2 km
● Patos Lagoon, 2016-11-30 – 2016-12-0263,586 measurements IDW interpolation, 600 samples
Chl-a0.896.55µg/L
CDOM0.140.61a.u.
TSM0.8522.9mg/L

Fig. 7 Campaign measurement record. 63,586 lidar returns are plotted along the vessel track for Chl-a, CDOM, TSM. The field view applies inverse-distance weighting to the same observations; the shoreline is from OpenStreetMap.

From 30 November to 2 December 2016, a LIF lidar recorded chlorophyll-a, CDOM, and suspended matter at the mouth of Patos Lagoon on the southern Brazilian coast. The transects followed the plume into the adjacent South Atlantic coastal water.

The field work involved Brazil’s Universidade Federal do Rio Grande. The published figures show chlorophyll-a, total organic carbon, and suspended matter; the track view reports the channels and units of the 2016 measurement record.
